제품 상세 정보:
결제 및 배송 조건:
|
| 이름: | 1.8m 활성화한 Pvc는 보안상 상업적 체인 쇠그물 울타리를 코팅했습니다 | 와이어: | 1.5 밀리미터 - 6 밀리미터 |
|---|---|---|---|
| 말다: | 10m,15m,20m,25m, 30m | 구멍: | 60x60mm,100x100mm 또는 당신의 requirement.,45mm/50mm/60mm,75x75mm,80mm * 80 밀리미터 기타 등등으로서. |
| 애플리케이션: | 펜스 메쉬, 경편궤도, 운동 경기장, 주거용인 기타 등등 | 프레임 마감: | 코팅된, 스테인레스 강, 파우더가 아니라 코팅된 PVC는 코팅했고 활성화됩니다 |
| 표면 처리: | PVC는 코팅했습니다, 코팅되고 핫-딥우프트 뜨거운 침지된 Galvanized,Galvanized+PVC가 활성화했습니다, PVC가 분사했습니다 | 압력에 의하여 대우되는 목제 유형: | 처리된 열기, 성질, 화학 제품 |
| 폭: | 0.5-6m | 용법: | 정원 울짱, 스포츠 울타리, 농가 울타리 |
| 포장: | 황마 또는 팔레트와 묶음에서, 팔레트, 방수 종이 | ||
| 하이 라이트: | 1.5mm pvc coated chain link fencing,25m length 6 foot high chain link fence,1.5mm 6 foot high chain link fence |
||

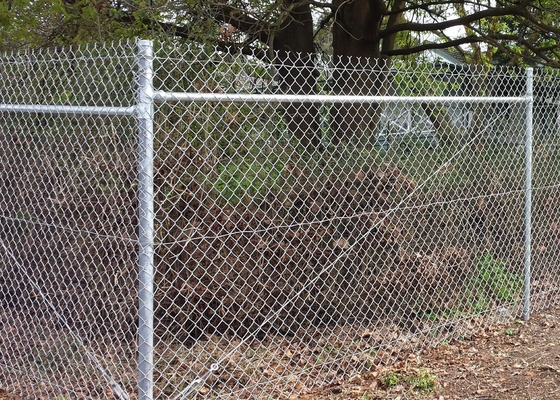

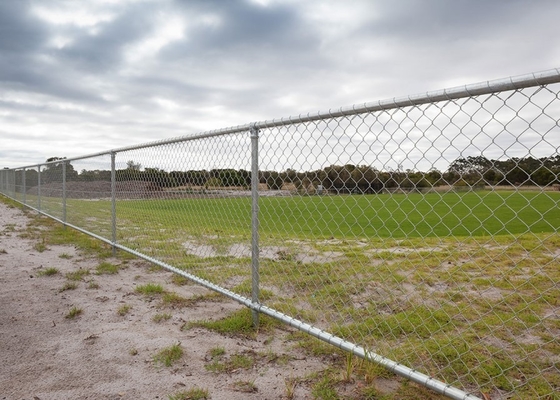

1.8m Galvanised Pvc Coated Security Commercial Chain Wire Fence
Chain wire fence product description
Chain wire fence provides extensive reliability and high security, all at a low cost. It’s durability comes from it’s galvanized heavy gauge steel core. It consists of steel wires woven together to form a diamond-patterned mesh fence.
To protect the steel from rust or corrosion, each steel wire is zinc coated through hot-dip galvanization.
Chain wire fence specifications
| Galvanized chain wire fence | |||
| Mesh | Wire gauge | Width | Length |
| 1" | BWG11,12,13,14 | 0.5--4m | 0.5--25m |
| 1-1/2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2-1/2" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-1/4" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-3/8" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 3" | BWG8,9,10,12 | 0.5--4m | 0.5--25m |
| PVC coated chain wire fence | |||
| MESH | WIRE GAGUE | WIDTH | LENGTH |
| 1" | BWG11,12,13,14 | 0.5--4m | 0.5--25m |
| 1-1/2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2" | BWG8,9,10,11,12,13 | 0.5--4m | 0.5--25m |
| 2-1/2" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 2-1/4" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 1-3/8" | BWG8,9,10,11,12 | 0.5--4m | 0.5--25m |
| 3" | BWG8,9,10,12 | 0.5--4m | 0.5--25m |
Chain wire fence type:
(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)

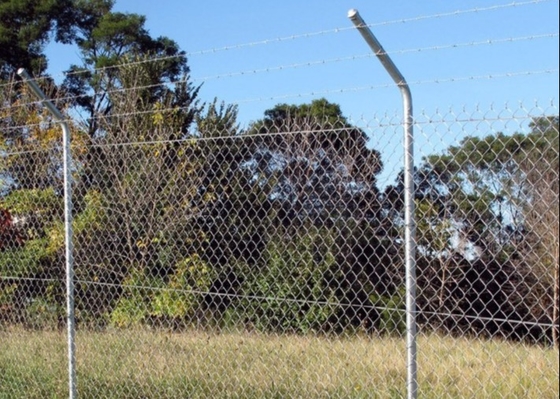

(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)
Chain wire fence production process:
Chain wire application:
This product is widely used in filters baskets, air filtration units,medicine ,building
cement, mechanical equipment protection, crafts manufacturing,high grade sound box nets, expressway fence,decorative ceilling,highway fence , walkway
Chain wire fence features:
Chain wire fence packing:
Chain wire fence gate:
